SmartDrawer - SupplyPro

COMPARTMENT-LEVEL CONTROL WITH
PICK-TO-LIGHT TECHNOLOGY

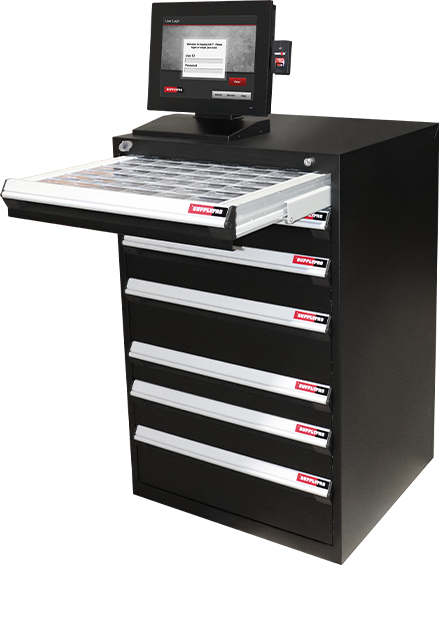

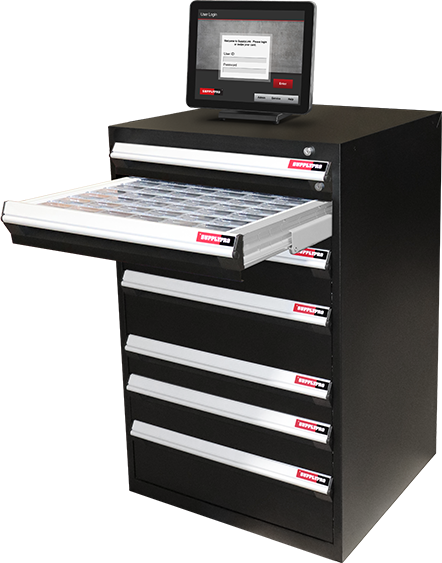

SmartDrawer^® is a flexible drawer-based storage system designed to dispense single items (or multiple items of a single SKU) under locked "smart" compartments with SecureBin^™ technology, a patented managed locking bin system. SmartDrawer can be a stand-alone unit or combined with other SupplyPro devices for a tailored dispensing solution. SmartDrawer technology is extremely versatile and configurable.

LEVEL OF CONTROL

Patented compartment level control with pick-to-light technology. LED's blink to show the location of the product.

SMARTDRAWER DELIVERS

Access products through the easy-to-use touch screen interface or select items directly using the integrated take and return buttons
Individual lid control according to usage requirements, such as whether the item is returnable or not, loan periods for check-in/check-out, automated lock-down, employee access, etc.
Full usage audit trails – see item, who used it and where it was used
High capacity storage in a small footprint
No repackaging
SecureBin technology provides a patented bin management system


	Lights indicate access; location buttons make it simple to select products

FEATURES

Single or multiple item dispensing
Easy to reconfigure
24/7 secured access
Easy to add on auxiliary units
Optimized for rapid refill– exclusive to SupplyPro, makes restocking and administration simple and fast
Choose lid configurations in one cabinet for maximum flexibility
Includes a variety of see through storage bins


	SmartDrawer is ideal for managing consumable and returnable materials

APPLICATIONS

Cutting Tools • Abrasives • Adhesives • Sealants
Security Items • Calibrated Instruments and Tools
Personal Protective Equipment (PPE) • Fasteners
Welding Supplies • Maintenance Supplies (MRO)
Safety Equipment • And many more!

SPECIFICATIONS

Choose the lid configuration that meets your needs—design your own cabinet for maximum flexibility.
Dimensions are lid openings:

2 Lid Standard Density 10.83" W x 20.8" H	4 Lid Standard Density 10.83" W x 9.50" H	8 Lid Standard Density 4.96" W x 9.50" H	12 Lid Standard Density 10.8" W x 2.21" H	16 Lid High Density 4.96" W x 4.02" H

24 Lid High Density 4.96" W x 2.21" H	24 Long Lid** Max Density 7.48" L x 1.12" D x 1.01" H	36 Lid** Max Density 24: 3.65" L x 1.12" D x 1.01" H 12: 7.48" L x 1.12" D x 1.01" H	48 Lid** Max Density 3.65" L x 1.12" D x 1.01" H	128 Compartments** High Density SBD II 2.36" W x 4.48" H x 0.88" D

**due to the "U" shape design of the max density cover, the useable space is .78" x 1.01"

Standard Cabinets:
- 6-Drawer
- 7-Drawer
- 8-Drawer
- 10-Drawer
Custom cabinet and drawer configurations available
Drawer-based manual override in the event of a power outage

ENHANCEMENTS

SupplyScale^® weight-based dispensing systems
Skid pad top
Fork lift base
Movable casters
Single Box Dispenser^™ (SBD II) cartridges support multiple inserts
